Beolab 18
Beolab 18
Verified
Knowledge 95%
Knowledge coverage
Derived from the facts and source material currently linked to this record.
- Core data80%
4 of 5 facts
- Verification100%
Verified
- Types & variants100%
2 of 2 areas
- Specifications100%
56 recorded
- Documents100%
7 available
- Images100%
3 linked

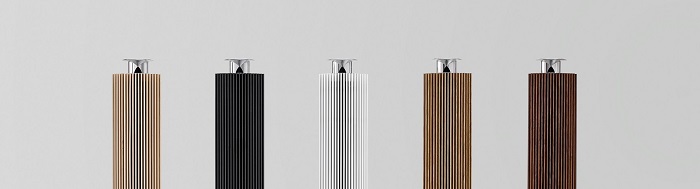

Images
External link only · product match not yet verified
- Category
- Speakers
- Family
- Beolab
- Years
- 2013
- Designer
- David Lewis Designers; Torsten Valeur
- Official support
- Bang & Olufsen support
Current market (SE / DK)1
- US · launch_msrp priceUS$6,590
Generations & variants2
- BeoLab 18model
- BeoLab 18 initial launch configurationmodel
Type numbers9
- 6807All · 100-240V AC (±10%), 50/60 Hz
- 6827US · 100-240V AC (±10%), 50/60 Hz
- 6834GB · 100-240V AC (±10%), 50/60 Hz
- 6835AUS · 100-240V AC (±10%), 50/60 Hz
- 6836J · 100-240V AC (±10%), 50/60 Hz
- 6837CH · 100-240V AC (±10%), 50/60 Hz
- 6838KOR · 100-240V AC (±10%), 50/60 Hz
- 6839TH · 100-240V AC (±10%), 50/60 Hz
- 6847TWN · 100-240V AC (±10%), 50/60 Hz
Key attributes56
- Bass amplifier power160 W, Class D
- Bass capability77.1 dB SPL @ 50 Hz
- Bass driver2 × 4 in
- Cabinet colourSilver
- Cabinet materialAluminium and composite materials
- Cabinet principleBass reflex
- Cabinet volume4.3 litres
- ConnectionService RJ45 socket
- ConnectionRCA line input L/R
- ConnectionToslink optical input
- ConnectionToslink optical output
- ConnectionToslink input and output
- ConnectionLine input, L/R phono sockets
- ConnectionPower Link ×2, RJ45
- Cover material or finishMaple
- Cover material or finishWhite
- Cover material or finishWalnut
- Cover material or finishOak
- Cover material or finishBlack
- DesignerDavid Lewis Designers; Torsten Valeur
- DesignerTorsten Valeur
- Dimensions132.4 × 15.5 × 11.5 cm (W × H × D)
- Dimensions52.13 × 6.10 × 4.53 in (W × H × D)
- Dimensions132.4 × 15.5 × 11.5 cm W × H × D
- Dimensions imperial52.13 × 6.10 × 4.53 in W × H × D
- Effective frequency range40.8–22000 Hz
- Effective frequency range40.8-22000 Hz
- FeatureThermal protection using NTC sensor
- FeatureLine sense; auto on/off
- FeatureRoom adaptation: Free, Wall, Corner
- FeatureAdaptive Bass Linearisation (ABL)
- FeatureThermal protection with NTC sensor
- FeatureLine sense auto on/off
- FeatureWireless Power Link
- High frequency driver¾ dome
- High frequency driver3/4 in dome
- Input voltage range0.2–2 V rms
- Loudspeaker systemTwo-way
- Mains frequency50/60 Hz
- Operating temperature10–40 °C
- Operating temperature10-40 °C
- Position presetsFree, Wall, Corner
- Power consumption standby0.4 W
- Power consumption typical14 W
- Power supply100-240 V AC (±10%), 50/60 Hz
- Power supply100–240 V AC ±10%
- Role settingsLeft, Right, Wireless
- Sensitivity88 dB SPL re 125 mVrms re 1m
- Speaker systemTwo-way
- Standby power consumption0.4 W
- Tweeter amplifier power160 W, Class D
- Typical power consumption14 W
- Weight8.5 kg
- Wireless audioWireless Power Link
- Wireless technologyWiSA 5GHz
- Wireless technologyWiSA 5 GHz
