Beovision 3400
No model line recorded
Draft
Knowledge 65%
Draft record — useful, but not every fact has been fully verified yet.
Knowledge coverage
Derived from the facts and source material currently linked to this record.
- Core data80%
4 of 5 facts
- Verification0%
Draft
- Types & variants100%
2 of 2 areas
- Specifications100%
57 recorded
- Documents0%
0 available
- Images100%
4 linked
Images
External link only · product match verified
- Category
- Televisions
- Family
- Beovision
- Years
- 1970
- Designer
- Not yet verified
- Official support
- Not yet verified
Current market (SE / DK)6
- UK · launch_price price — Beovision 3400 K£409
- UK · launch_price price — Beovision 3400 K£399
- UK · original_retail price — Beovision 3400 K£409
- UK · original_retail price — Beovision 3400 K£399
- UK · original_retail price — Beovision 3400 K£415
- UK · original_retail price — Beovision 3400 K£410
Generations & variants3
- Beovision 3400Base 66 cm colour television with sliding tambour screen doors
- Beovision 3400 K26-inch colour television
- Beovision 3400 SJUK-market 66 cm colour television
Type numbers4
- 3230Continental Europe · 200–220 V
- 3231Continental Europe · 200–220 V

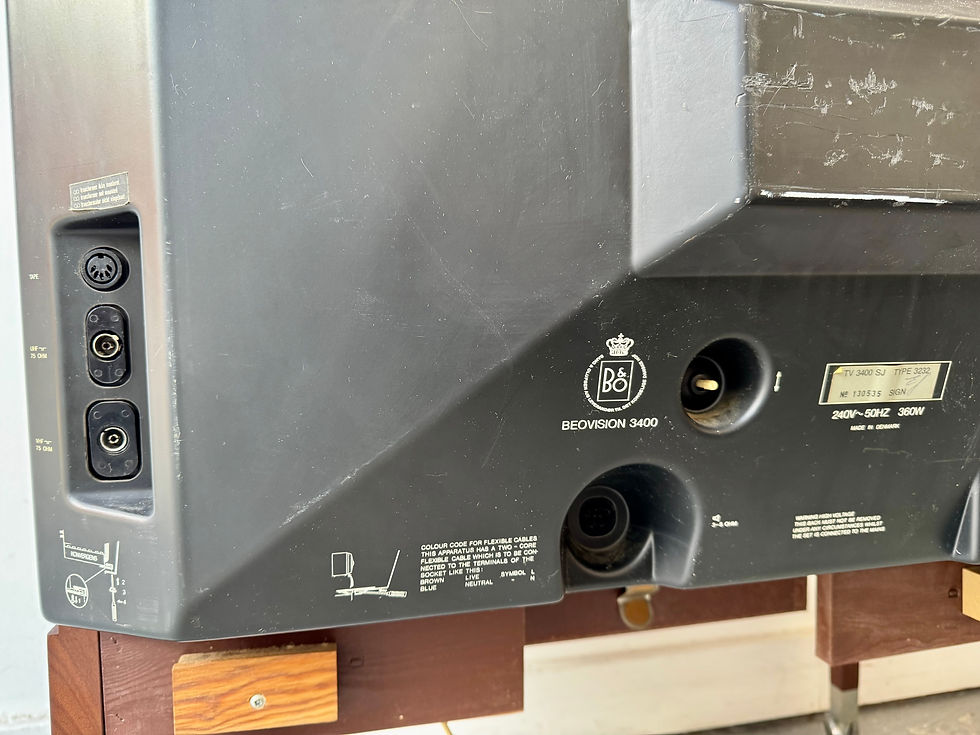

- 3232UK; SJ/GB · 200–220 V
- 3235K · 200–220 V
Finishes3
- Rosewood
- Teak
- White
Key attributes57
- Active convergencePresent
- Antenna input uhf75 ohms unbalanced ohm
- Antenna input vhf75 ohms unbalanced ohm
- Audio distortion<1 at 3 W %
- Audio distortionLess than 1 at 3 W %
- Audio frequency response70–15,000 ±1.5 Hz
- Audio frequency response70–15000 ±1.5 Hz
- Audio power output3 W RMS
- Bass control±10 at 150 dB; Hz
- Cabinet constructionCabinet fitted tightly around the tube; nearly all-screen frontal aspect
- Chassis designHybrid; partly valved
- Chassis typehybrid; partly valved
- Convergence systemActive convergence
- Dimensions67.9 × 49.5 × 46.5 cm W × H × D
- Diode count89 diodes
- Diodes89 count
- Dynamic focusingPresent
- Extension speaker output3–5 ohm
- Focus systemDynamic focusing
- High voltage controlHigh voltage monitored and scanning drive varied in real time to resize picture
- InputUHF aerial, 75 ohms unbalanced
- InputVHF aerial, 75 ohms unbalanced
- Integrated circuit count1 integrated circuit
- Integrated circuits1 count
- Line scanning configurationPush-pull arrangement combining line scanning and high-voltage generation
- OutputExtension speaker, 3–5 ohms
- Picture tubePhilips/Mullard Phase II Delta, type A66-140X
- Picture tube scan angle110 degrees
- Picture tube size66 cm
- Picture tube typePhilips/Mullard Phase II Delta A66-140X
- Power consumption360 W
- Power supply200–220 V
- Product categorycolour television
- Product categoryColour television
- Screen protectionSliding tambour doors
- Screen size26 inches
- Screen size66 cm cm
- Screen size nominal26 in
- Source release evidenceBeoworld lists release dates 1970 and 1971; Beocentral dates the K variant 1972–1974.
- Speaker configuration1 forward-facing tweeter; 1 side-facing all-range unit
- Speaker frequency response80–13,000 Hz DIN 45570
- Speaker frequency response80–13000 Hz DIN 45570
- Special featureAutomatic colour-section cut-out when receiving a monochrome programme
- Tone control bass±10 at 150 dB at Hz
- Tone control treble±10 at 10,000 dB at Hz
- Transistor count108 transistors
- Transistors108 count
- Treble control±10 at 10000 dB; Hz
- Tuning bandUHF
- Tuning bandsVHF bands I and III
- Tuning bandsVHF bands I and III; UHF channels 21–70
- Tuning channelsVHF channels 2–12
- Tuning channels uhf21–70
- Tuning channels vhf2–12
- Valve count10 valves
- Valves10 count
- Weight43 kg
