Beocenter 2
Beocenter 2
Verified
Knowledge 100%
Knowledge coverage
Derived from the facts and source material currently linked to this record.
- Core data100%
5 of 5 facts
- Verification100%
Verified
- Types & variants100%
2 of 2 areas
- Specifications100%
73 recorded
- Documents100%
21 available
- Images100%
6 linked
Images
External link only · product match verified
- Category
- Sound Systems
- Family
- Beocenter
- Years
- 2004–2012
- Designer
- David Lewis
- Official support
- Bang & Olufsen support
Current market (SE / DK)1
- GB · launch price£2,650
Generations & variants2
- BeoCenter 2DVD / original AV-center version
- BeoCenter 2 (Audio)Audio-only variation
Type numbers30
- 2801
- 2802
- 2811EU2 · 187–264 V / 50–60 Hz
- 2812EU3 · 187–264 V / 50–60 Hz
- 2813EU4 · 187–264 V / 50–60 Hz
- 2814EU5 · 187–264 V / 50–60 Hz
- 2815GB2 · 187–264 V / 50–60 Hz
- 2816GB3 · 187–264 V / 50–60 Hz
- 2817US1 · 85–132 V / 50–60 Hz
- 2818US4 · 85–132 V / 50–60 Hz
- 2819JP2 · 187–264 V / 50–60 Hz
- 2820AU4 · 187–264 V / 50–60 Hz
- 2821TW3 · 85–132 V / 50–60 Hz
- 2822KR3 · 187–264 V / 50–60 Hz
- 2823LA4 · 187–264 V / 50–60 Hz
- 2824
- 2825
- 2826
- 2827
- 2828
- 2829
- 2830
- 2831
- 2832
- 2833
- 2834
- 2835
- 2836
- 2837
- 2838
Key attributes73
- AM frequency range150–1710 kHz
- Audio frequency range CD DVD aux20–20,000 Hz
- Audio frequency range disc aux20 Hz–20 kHz
- Audio frequency range FM radio30 Hz–15 kHz
- Audio frequency range radio FM30–15,000 Hz
- Audio sourcesRadio, CD and DVD; MP3 CD playback
- CD disc naming capacity200 discs
- CD naming capacity200 discs
- Colour systemPAL/NTSC according to region setting
- Colour systemPAL/NTSC depends on region setting
- Control panel typeSensi-touch piezo-electrical keyboards
- DesignerDavid Lewis
- Digital audio output formatsStereo; encoded surround sound; Linear PCM; AC-3; MPEG-2; DTS
- Digital radio moduleDAB module described as available for compatible updated units
- Disc sizes12 and 8 cm; 8 cm requires adaptor
- Disc sizes12 cm and 8 cm with adaptor
- Discontinued year2012
- Display typeVacuum Fluorescent Display with automatic light intensity control
- Display typeVacuum Fluorescent Display with automatic light-intensity control
- DVD regionAccording to region
- DVD zoneAccording to region
- FM frequency range87.5–108.0 MHz
- FM frequency range87.5–108.0; Japan 76–90 MHz
- FM frequency range japan76–90 MHz
- LoaderMotorized doors and loader
- Master unit cabinet finishSilver
- Master unit connectionsHeadphone/mini-jack; special transmission cable to Socket Unit
- Master unit depth243 mm
- Master unit dimensions372 × 50 × 243 mm; without standard feet
- Master unit dimensions with standard feet37 × 15 × 23 cm
- Master unit finishSilver
- Master unit headphone connection1 mini-jack
- Master unit height50 mm
- Master unit placementTable, wall, dedicated floor stand or dedicated table stand
- Master unit weight4.5 kg
- Master unit width372 mm
- Operation panelSensi-touch piezo-electrical keyboards
- Playback formatsDVD-Video; Video CD; CD-DA; CD-R; CD-RW; CD-MP3
- Power consumption standbyless than 2 W
- Power consumption typical22 W
- Power supply regionsEU, GB, US, KOR; JPN, US, TWN
- Radio station naming capacity60 stations
- RdsName, RadioText, Clock
- Rds functionsName, RadioText, Clock
- Release date2004 year
- Release year2004
- Remote controlBeo 4
- Remote controlBeo4
- Signal to noise CD>105 dB A-weighted
- Signal to noise ratio CDgreater than 105 dB A-weighted
- Socket unit audio aux4 phono sockets, input L/R and output L/R
- Socket unit audio line out2 phono sockets, L/R
- Socket unit av connection1 AV Link 21-pin SCART; CVBS, Y/C, RGB selectable output
- Socket unit cabinet finishBlack

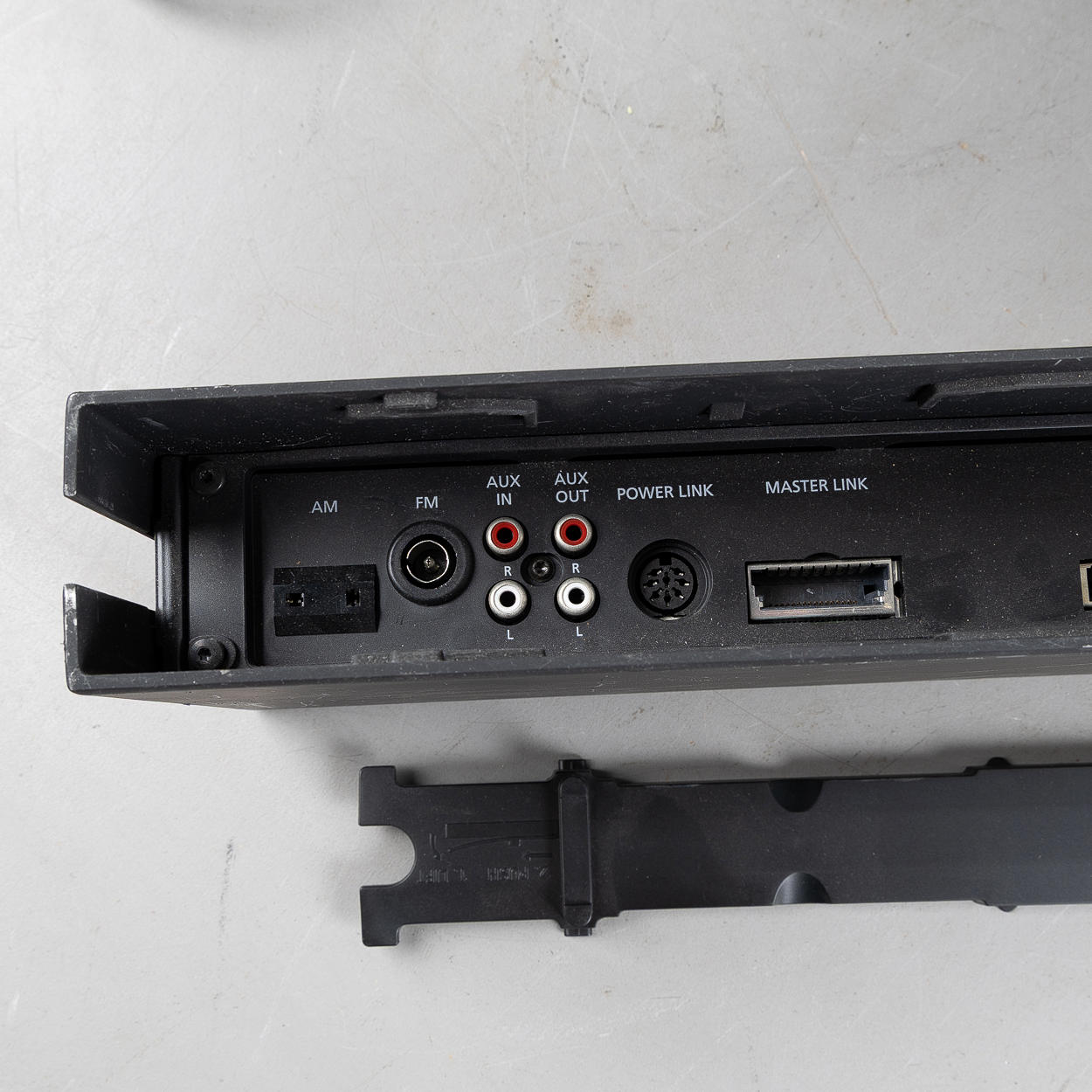

- Socket unit connectionsSCART; S-video; control mini-jack; composite video; line out L/R; AUX input/output L/R; digital output; MasterLink; PowerLink; FM antenna; AM antenna; mains connector
- Socket unit control connection1 mini-jack CTRL
- Socket unit depth55 mm
- Socket unit dimensions536 × 150 × 55 mm; without wall bracket
- Socket unit dimensions with wall bracket54 × 15 × 6.5 cm
- Socket unit finishBlack
- Socket unit height150 mm
- Socket unit s video connection1 mini-DIN, 4-pin
- Socket unit video connection1 yellow phono CVBS output
- Socket unit weight2.8 kg
- Socket unit width536 mm
- Standby power consumption<2 W
- Supported playbackDVD-Video; Video CD; CD-DA; CD-R; CD-RW; CD-MP3
- System architectureMaster Unit and separate Socket Unit
- Typical power consumption22 W
- Video formatsRGB; S-Video (Y/C); CVBS (Composite video)
- Video formatsRGB; S-Video (Y/C); CVBS composite
- Voltage range high187–264 V / 50–60 Hz
- Voltage range low85–132 V / 50–60 Hz
